▎Equipment Applications

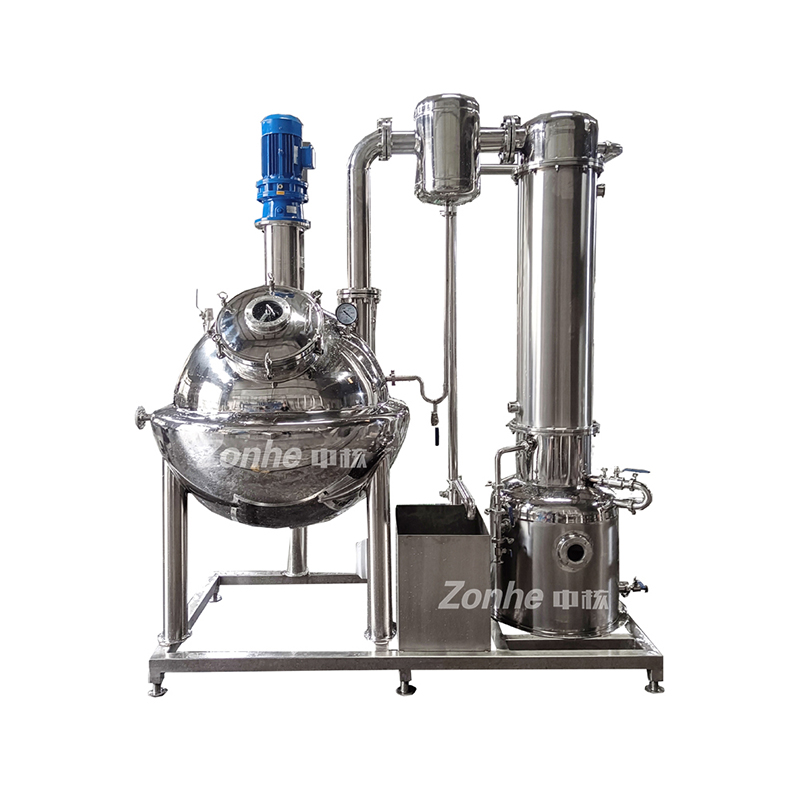

This equipment consists of a single-effect heater, a single-effect evaporation chamber, a double-effect heater, a double-effect evaporation chamber, a vapor-liquid separator, a condenser, a collection tank, and valves and fittings. It is mainly used for concentrating liquid materials in the traditional Chinese medicine, Western medicine, food, and chemical industries. The optimal specific gravity for concentrated extracts is approximately 1.2.

▎Equipment Features

1. This equipment combines external heating with natural circulation and vacuum negative pressure evaporation. The material is continuously exchanged between heating and evaporation, resulting in uniform heating and rapid evaporation.

2. The entire process is completed in a closed system, ensuring vacuum, low temperature, and no pollution.

3. The inner surface of the equipment is mirror-polished, while the outer surface is frosted.

4. The all-glass manhole design allows for clear observation of the internal material concentration process.

5. The vapor-liquid separator effectively reduces the loss of effective components due to vapor-liquid entrainment.
6. It allows for continuous feeding under vacuum, automatic condensate discharge, and sampling.

▎Technical Parameters
