Evaporation and Concentration Equipment

Forced circulation evaporator

The forced circulation concentrator is suitable for concentrating materials such as traditional Chinese medicine, Western medicine, starch, monosodium glutamate, and dairy products, especially suitable for low-temperature vacuum concentration of heat-sensitive materials.

INQUIRE NOW

Previous: Thin film evaporator

Next: No more data

Product Details

Product Introduction

Consult Now

▎Equipment Applications

▎Structural Composition

The forced circulation concentrator consists of a heater, a main concentrator tank, a forced circulation pump, a stirring system, a vacuum system, a gas-liquid separator, a condenser, and a recovery tank. The entire unit is made of stainless steel, offering excellent corrosion resistance, a beautiful appearance, and a unique structure.

▎Equipment Features

1. Mirror-polished inner surface and frosted outer surface, meeting GMP requirements.

2. Large heating area, fast circulation speed, high heat transfer efficiency, and excellent concentration effect.

3. Suitable for the evaporation and concentration of high-viscosity materials.

▎Technical Parameters

Model	ZN100	ZN200	ZN500	ZN1000	ZN2000
Evaporation capacity kg/h	20	40	100	150	350
Condenser area㎡	4	6	8	10	20
Cooling area㎡	0.3	0.5	1	1.5	2
Steam consumption kg/h	40	60	110	185	400
Cooling water consumption T/h	8	10	15	20	30

▎Equipment Applications

▎Structural Composition

▎Equipment Features

1. Mirror-polished inner surface and frosted outer surface, meeting GMP requirements.

2. Large heating area, fast circulation speed, high heat transfer efficiency, and excellent concentration effect.

3. Suitable for the evaporation and concentration of high-viscosity materials.

▎Technical Parameters

Model	ZN100	ZN200	ZN500	ZN1000	ZN2000
Evaporation capacity kg/h	20	40	100	150	350
Condenser area㎡	4	6	8	10	20
Cooling area㎡	0.3	0.5	1	1.5	2
Steam consumption kg/h	40	60	110	185	400
Cooling water consumption T/h	8	10	15	20	30

Previous: Thin film evaporator

Next: No more data

Ball type concentration tank-

Ball type concentration tank

This equipment mainly consists of a concentration tank, a vapor-liquid separator, a condenser, a recovery tank, and a stirring and transmission device. It can be used in pharmaceutical, food, and chemical industries for the concentration, distillatio...

Vacuum pressure reducing concentrator tank-

Vacuum pressure reducing concentrator tank

The vacuum pressure reducing concentrator is suitable for concentrating liquids such as traditional Chinese medicine, Western medicine, glucose, starch, monosodium glutamate, dairy products, oral liquids, and food, especially suitable for low-tempera...

Falling film evaporator-

Falling film evaporator

The falling film evaporator is a high-efficiency single-pass film evaporation device, suitable for concentrating materials such as milk, juice, biochemicals, pharmaceuticals, condiments, and food additives.

Thin film evaporator-

Thin film evaporator

Scraped film evaporators utilize scraped film formation technology to create a rapidly flowing thin film of material on the inner wall of the evaporator. This ensures both heat transfer area and efficiency. Furthermore, the high vacuum within the sys...

Single effect evaporator-

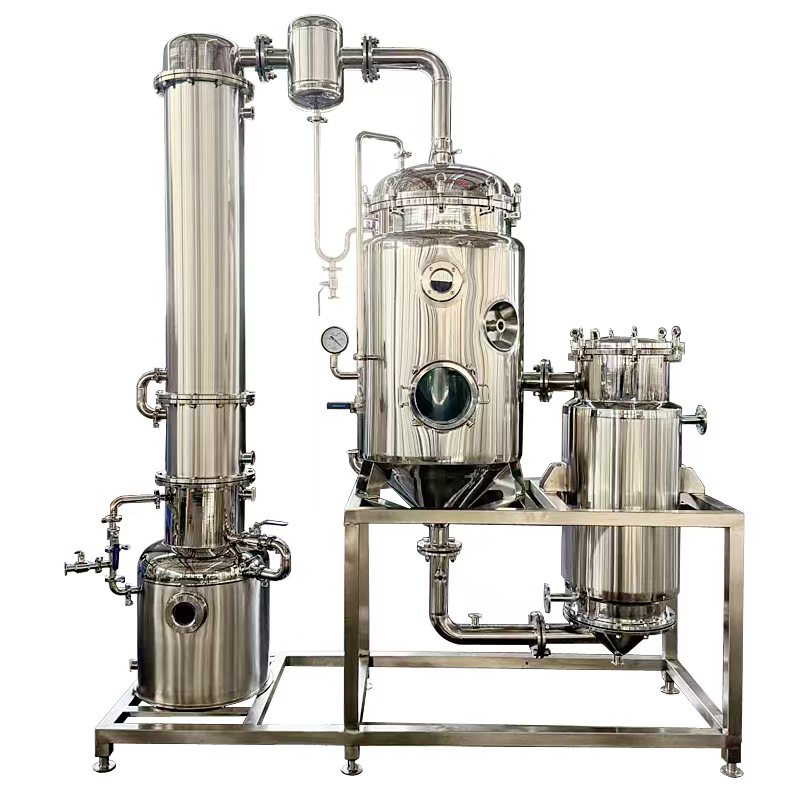

Single effect evaporator
